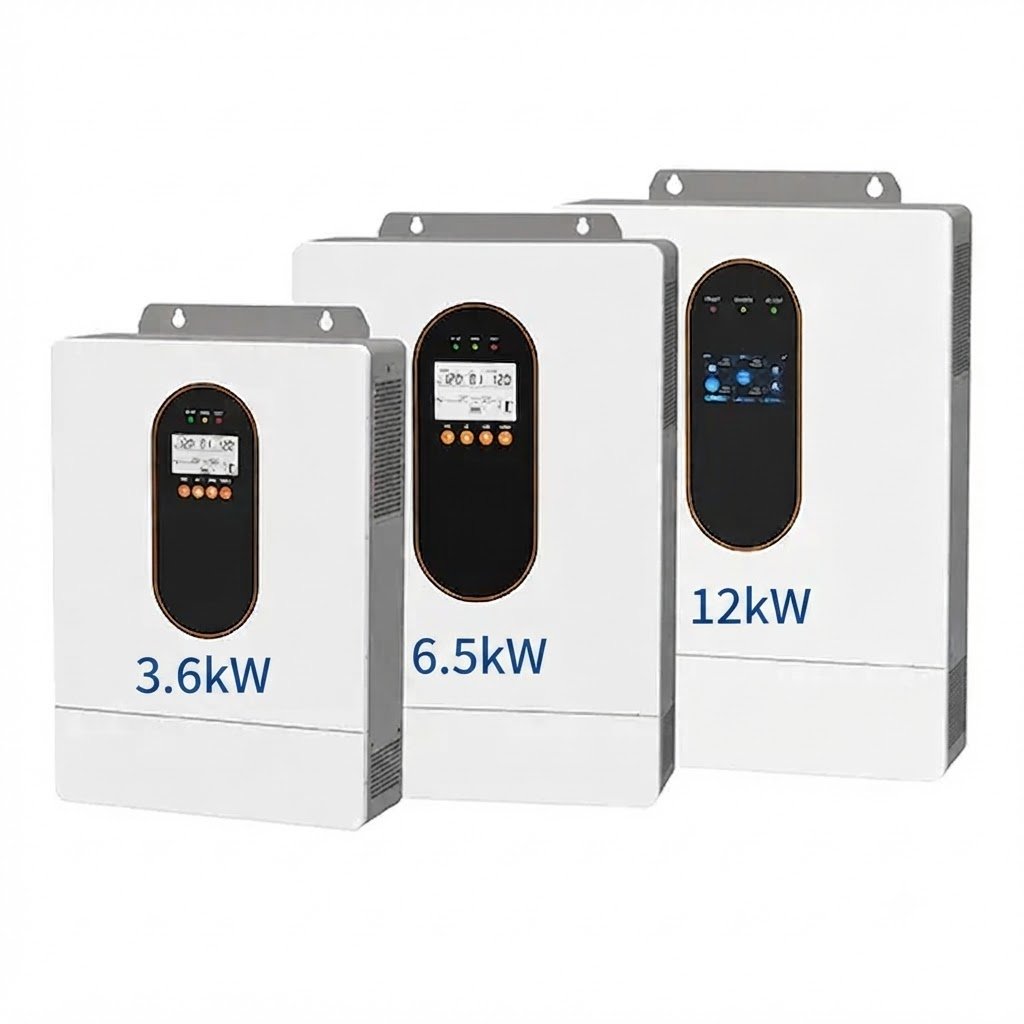

Split Hybrid Solar Inverter – 3.6kW / 6.5kW / 12kW Models

AS Split Hybrid Solar Inverter – 3.6kW / 6.5kW / 12kW Models

Designed for maximum energy independence, the AS Split Hybrid Solar Inverter delivers reliable, pure sine wave power for homes, cabins, and small businesses. Whether you’re going off-grid, expanding a grid-tied system, or preparing for backup power, this inverter adapts to your needs.

Supporting 1 or 2 built-in MPPT trackers, it efficiently harvests solar energy and works seamlessly with LiFePO4 batteries via RS485 communication. The system can operate with or without batteries, making it a flexible choice for any solar setup. With split-phase 120V/240V output, it powers standard household appliances and heavy-duty equipment with ease.

Built to last, the inverter features a detachable dust cover for harsh environments, optional WiFi remote monitoring, and supports parallel connection of up to 6 units for scalable power. Customizable production ensures the system fits your exact requirements.

Available Models: 3.6kW | 6.5kW | 12kW

Key Features at a Glance

• 1 or 2 Built-in MPPT Trackers – Maximizes solar harvest in varying light conditions

• Lithium Battery Activation – Via PV or Utility for easy startup

• LiFePO4 Battery Compatible – Communicates via RS485 for optimized charging

• Pure Sine Wave Output – 120V/240V split-phase, safe for sensitive electronics

• Parallel Capability – Connect 0–6 units for expanded power capacity

• Wide PV Input Range – Up to 300VDC or 500VDC (model dependent)

• Off-Grid & Grid-Tied Ready – Operates independently or in parallel with the utility grid

• Works Without Batteries – Powers loads directly from solar or utility

• Detachable Dust Cover – Protects internal components in harsh environments

• WiFi Remote Monitoring – Optional real-time system tracking via app

  Technical Specifications – Quick Reference

  Model	AS362048-M80-A	AS362048-M80-B	AS602048-M150-A	AS602048-M150-B	AS123048-M200-A	AS123048-M200-B
  Parallel Mode	None	1–6 Units	None	1–6 Units	None	1–6 Units
  Nominal Output Power	3600VA / 3600W	3600VA / 3600W	6500VA / 6500W	6500VA / 6500W	Split: 12000VA / 12000W	Split: 12000VA / 12000W
  Nominal Battery Voltage	48V	48V	48V	48V	51.2V	51.2V
  Max PV Open Circuit Voltage	300VDC	300VDC	500VDC	500VDC	500VDC	500VDC
  Max Hybrid Charge Current	Up to 80A	Up to 80A	Up to 150A	Up to 150A	Up to 220A	Up to 220A
  Output Voltage	120VAC	120VAC	120VAC	120VAC	120/240VAC	120/240VAC
  Certification	CE (IEC62109)	CE (IEC62109)	UL STD.1741	UL STD.1741	UL STD.1741	UL STD.1741

  ---

   Technical Details

  Specification	Details
  Mains Mode – Nominal Input Voltage	120VAC±5% (single phase) / 120/240VAC (split phase)
  Input Voltage Range	(90–140VAC)±2% / (85–140VAC)±2%
  Frequency	50/60Hz (Auto detect)
  Max Efficiency (Mains)	>95%
  Conversion Time (bypass ↔ inverter)	10ms (Typical)
  Max Bypass Overload Current	40A / 60A / 63A (model dependent)
  Inverter Output Waveform	Pure Sine Wave
  Inverter Max Efficiency	>91%
  Power Factor	1
  Peak Power	Up to 18,000VA
  Load Motor Capability	2HP / 5HP / 6HP
  Battery Voltage Range	40.0–60VDC / 40.0–58.6VDC
  Save Power Mode	Loads < 25W
  Solar MPPT Voltage Range	90–260VDC / 90–450VDC
  PV Input Power	Up to 6000W x 2
  Operating Temperature	-15°C to 55°C / -10°C to 55°C (derating above 45°C)
  Storage Temperature	-25°C to 60°C
  Humidity	5–95% (Three anti-paint protection)
  Noise	≤60dB
  Cooling	Forced air cooling, adjustable fan speed
  Communication	USB / RS485 / WiFi (optional) / GPRS / Dry node control
  Certification	CE, UL STD.1741, FCC Part 15 Class B, EN61000 C2
